1.Boiler continuously offer hot steam into the conditioner, so materials can be fully cooked and the nutritional value is improved. Thus the quality and quantity of pellets can be improved greatly with lower power consumption. 2.High temperature and high pressure process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest. 3. Key parts are processed through vacuum quench treatment with high processing precision, thus have a long service life. 4. Screw sleeve adopts jacketed construction, which can be injected in with hot steam or cooling water, thus the extruding temperature can be controlled effectively. 5. Single-screw extrusion cooking: capable of high production capacities; variable screw speeds. 6. Key parts are processed through vacuum quench treatment with high processing precision, thus have a long service life. 7. You can change different molds to make pellets with different diameters.
Product Specification
Model
Capacity
Main Power
Feeding Power
Screw Diameter
Cutter Power
Conditioner Power
PHJ60
0.18-0.20t/h
15kw
0.4kw
60mm
0.4kw
0.37kw
PHJ70
0.30-0.35t/h
18.5kw
0.75kw
70mm
0.4kw
1.1-1.5kw
PHJ80
0.40-0.45t/h
22kw
0.75kw
80mm
1.5 kw
1.5-2.2kw
PHJ90
0.50-0.55t/h
37kw
1.1kw
90mm
2.2kw
2.2-3.0kw
PHJ120
0.7-0.8 t/h
55kw
1.1kw
120mm
2.2kw
2.2-3.0 kw
PHJ135
1.0-1.2t/h
75kw
1.5kw
135mm
3.0kw
3.0-4.0kw
PHJ160
1.8-2.0t/h
90kw
2.2kw
155mm
3.0kw
4.0kw
PHJ200
3.0-5.0t/h
132kw
2.2kw
195mm
4.0kw
5.5kw

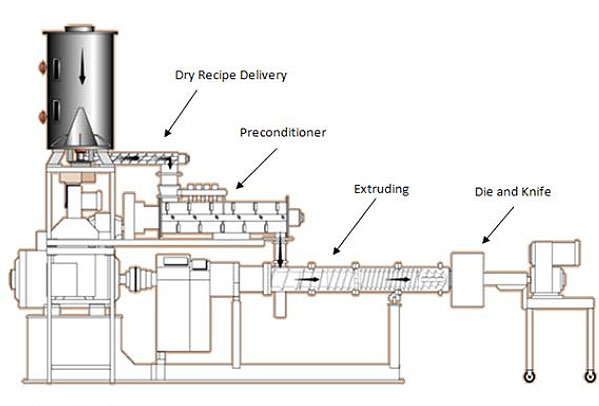

Working Principle of Fish Feed Pelletizer
The heart of the extruder machine working is: preconditioning, cooking and die shaping. With boiler continuously providing hot steam into the conditioner, mixed materials from fish feed mixer can be fully cooked and the nutritional value is improved. The cooking process can cause a high level of gelatinization of starches, results in feeds with good water stability. The fish feed extruder is a long barrel with a screw auger inside which is specially designed to subject feed mixtures to high heat and steam pressure. When feed exits the die at the end of the barrel, trapped steam blows off rapidly, the soft warm pellets expand, and a low density floating pellet is produced. After that a cutting device will cut the formed pellets into different length as required. The extruder is very versatile, and can make feeds with many different characteristics. Attentions: our fish feed extruder is of single screw design. The pellets extruded from pellet mill is about 80℃ and moisture content is 18%-20%, so you should equip a dryer and cooler if the capacity is more than 500kg/h.

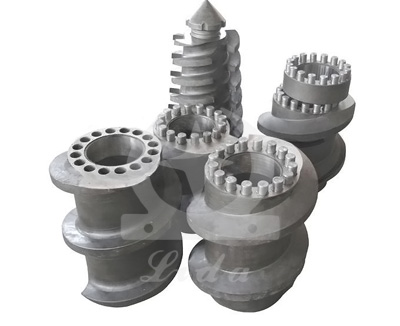

Spare parts of Single Screw Fish Feed Extruder
Main machine parts directly determine the machine quality. All our parts are manufactured from the best quality materials to make sure the service life of the components are as long as possible. ♦ Screw sleeve adopts jacketed construction, which can be injected in with hot steam or cooling water, thus the extruding temperature can be controlled effectively. ♦ Removable cutting mechanism use knives with good elasticity, which attach to the die plate tenderly and can be operated quickly and accurately. ♦ Screw bolts and dies are processed through vacuum quench treatment, also be processed with high processing precision and have a long using longevity. Due to high pressures, shear and abrasion inside the barrel of extruders, the easily-worn parts like barrel, screw periodically should be replaced. Our extruders are of the modular design so worn components can be easily removed and replaced as needed.
