Product Description
1、Main drive adopts high accuracy gearbox;
2、Full stainless steel enlarged conditioner ensures good cooking effect;
3、Frequency conversion （Electromagnetic speed） feeder, with overload protection device，equipped strong
magnetic security device;
4、High efficiency driving,stable and low noise;
5、Main parts of the bearing and standard parts are imported.

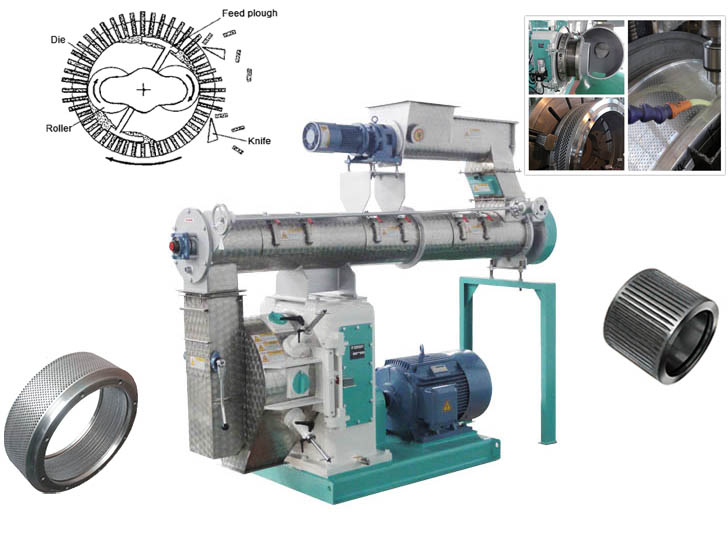

Working Principle
Raw materials with water content no greater than 18% enter into screw feeder through hopper,through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, the security magnets remove the magnetic impurity mingling with supplies then through the enforced feeder, enter the pressing room to pelletize finally.
Product Specification
| Model | Power (kw) | Power of modulator (KW) | Power of feeder (KW) | Capacity (t/h) | Inner diameter of die (mm) | Pellet Diameter (mm) |
| SZLH320 | 37/45 | 2.2 | 1.1 | 2-4 | ∮320 | ∮2-∮10 |
| SZLH350 | 55 | 3 | 1.5 | 3-6 | ∮350 | ∮2-∮10 |
| SZLH400 | 75/90 | 5.5 | 1.5 | 4-11 | ∮400 | ∮2-∮10 |
| SZLH420 | 90/110 | 5.5 | 1.5 | 5-12 | ∮420 | ∮2-∮10 |
| SZLH508 | 132/160 | 7.5 | 2.2 | 6-20 | ∮508 | ∮2-∮10 |
| SZLH678 | 185/200 | 11 | 2.2 | 8-25 | ∮678 | ∮2-∮12 |
| SZLH768 | 280/315 | 15 | 2.2 | 15-28 | ∮768 | ∮2-∮12 |
