Product Description
1、Using Three rows of chain, Smooth operation, Low noise, Long life;

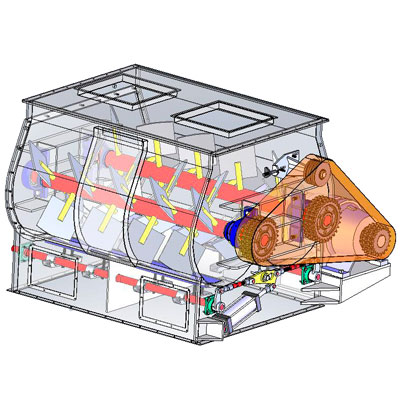

2、Design bigger Mixing chamber, Biaxial blade rotor, Good mixing effect.At the top of the spray system, effectively improve the liquid atomization effect, prevent the cluster;
3、With short mixing time (30~90S/batch ), The mixed uniformity CV≤5%;
4、Total length type of double open the door, big Angle of opening door, Quick discharge, Less remain;
5、Special shaft end and the door sealing structure, Good sealing to ensure no leakage material;
6、It is widely used in a mixture of powder, granule, flake, block material of feed, food,chemical, pharmaceutical and
other industries.
Product Specification
Model | Volume(m3) | Capacity/batch(kg) | Mixing Time(s) | Homogeneity (CV≤5%) | Power(kw) |
SHSJ0.2 | 0.2 | 100 | 30-120s (can be adjusted according to different raw materials)
| 5 | 2.2 |
SHSJ0.5 | 0.5 | 250 | 5 | 5.5 | |
SHSJ1.0 | 1.0 | 500 | 5 | 11 | |
SHSJ2.0 | 2.0 | 1000 | 5 | 18.5 | |
SHSJ3.0 | 3.0 | 1500 | 5 | 22 | |
SHSJ4.0 | 4.0 | 2000 | 5 | 30 | |
SHSJ6.0 | 6.0 | 3000 | 5 | 37 | |
SHSJ8.0 | 8.0 | 4000 | 5 | 45 |
